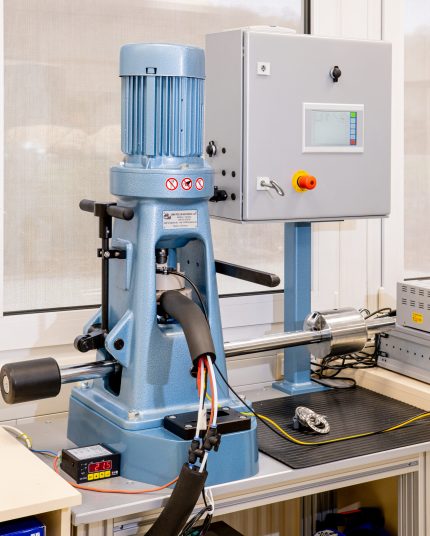

E-Lub Tester

The E-Lub Tester determines the ohmic resistance and capacitance of your rolling bearing, thus of the lubricant used therein, under real operating conditions applied by the FBT four-ball tester. For this, a high-precision impedance measurement is used, which was developed based on flucon's EPSILON+ laboratory instrument. In addition, the E-Lub Tester enables EDM breakdown currents to be analyzed under a defined electrical load on the bearing so that the performance of greases and oils in rolling bearings can be specifically investigated under variable operating conditions (lubricant temperature, speed, load).

Key features

  • determination of the lubricant impedance in rolling bearings
  • suitable for axial roller bearings (type 51208) and radial ball bearings (type 6008)
  • determination of ohmic resistance and capacitance
  • EDM analysis (short-circuit-Scan): measurement of electrical breakdowns and ohmic currents during operation
  • variable operating parameters: E-Lub Tester: lubricant temperature (automatic control), electrical load (common-mode voltage); FBT: running time, speed, load (all relevant data is stored in the program)
  • automated measuring programs
  • includes intuitive software for control and measurement with a Windows PC
  • includes impedance calibrator
Quick view
Compare

EPSILON+ for the measurement of dielectric fluid properties (Conductivity, Permittivity, DDF)

EPSILON+ is a compact laboratory measuring device that is used for the precise measurement of the complex fluid impedance, based on DIN IEC 60247 (own DIN test standard coming soon). This reliable system determines the following parameters:
  •  Specific Electrical Conductivity
  •  Relative Permittivity / Dielectric Constant   ε r
  •  Dielectric Dissipation Factor (DDF) tan δ

EPSILON+  //  Measurement

EPSILON+ is characterized by its operator convenience. Less than 10 ml fluid quantity are sufficient for the measurement set-up of the screw-in sensor. The sample is filled into the supplied stainless steel container and heated up to the desired test temperature by means of a thermostat (optionally available). Automatic measurement can be conducted as well within a desired temperature range, with increments of your choice.

EPSILON+  //  Features

  •  determination of the complex fluid impedance
  •  only small samples required (8 ml)
  •  high accuracy and repeatability
  •  wear-free stainless steel screw-in sensor
  •  integrated temperature measurement (PT100)
  •  optional accessory: thermostat for automatic temperature control of your sample
  •  evaluation electronics in compact table housing with LC Display
  •  EPSILON+ PC software for control and measurement evaluation included
Quick view
Compare

LAMBDA Thermal Conductivity Meter

LAMBDA is a compact, operator-friendly transient hot wire instrument that facilitates a fast determination of the thermal conductivity, thermal diffusivity and specific heat capacity in a wide temperature and pressure range by means of the transient hot wire (THW) method, according to ASTM D7896-19. This highly accurate athermal calorimeter is suited for fluid analysis in the laboratory as well as in the field, including the measurement of thermal conductivity of nanoparticle dispersions/nano fluids. Our LAMBDA Thermal Conductivity Meter can be operated either in stand-alone mode or with the intuitive software (incl.) on your WINDOWS computer via RS-232/USB. highly accurate thermal conductivity meter for laboratory use wide measuring range (10 - 2000 mW/(m*K)) wide temperature range (-50°C to 300°C) fast, instationary resistance measurement by means of the hot wire method conforms to ASTM D7896-19 robust stainless steel sensor no unwanted influence of convection suitable for any type of fluid, powder or gel requires only small sample volumes (approx. 40 ml) high accuracy and repeatability (+/- 1 %) thermal conductivity (λ), thermal diffusivity (aT), specific heat capacity (cp) and temperature are displayed
Quick view
Compare

ROCKING CELL RC5

With the Rocking Cell RC5 by PSL Systemtechnik hydrate-formation can be examined and effectiveness and efficiency of kinetic hydrate inhibitorsand the influence of corrosion inhibitorscan be tested in laboratory.
Quick view
Compare

SAPPHIRE ROCKING CELL

Test of AA and KHI at deepwater conditions Multi-phase flow testing Full view polished test cell for optimization of inhibitors Ball run time measurement 4 designs - 2,6,8,20 test cells max Stringent test conditions for improvement on product safety for deepwater application Sour gas testing
Quick view
Compare

TURBULENCE RHEOMETER – A FRICTION FLOW LOOP

The Turbulence Rheometer (TR), also known as Friction Flow Loop, is a fully automated laboratory instrument for analysis of flow behavior in pipelines. The TR is used to analyze all kinds of flow improver e.g. Drag Reducers (DRA), Friction Reducers or Viscosity Reducers.
Quick view
Compare

WAX FLOW LOOP

Analysis of wax appearance and deposition in pipelines: The fully automated Wax Flow Loop by PSL Systemtechnik is a compact laboratory instrument to research deposition effects of waxes, paraffins and asphaltenes in pipelines.
