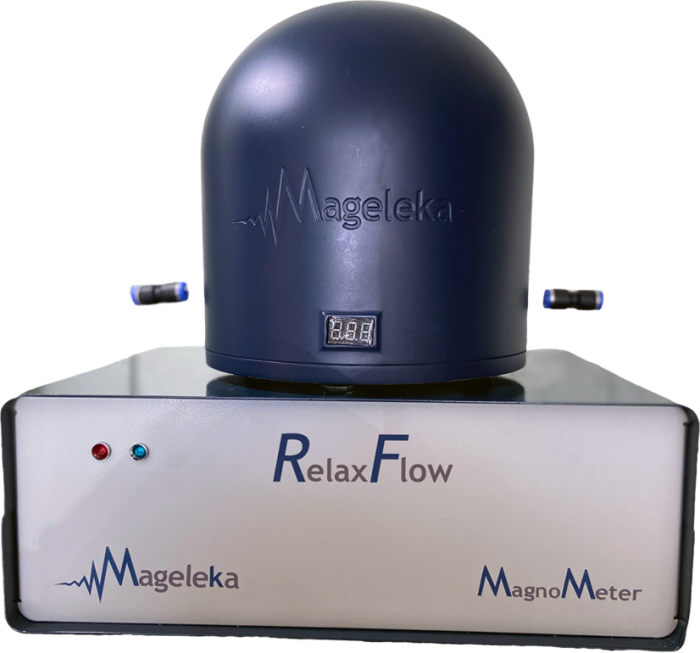

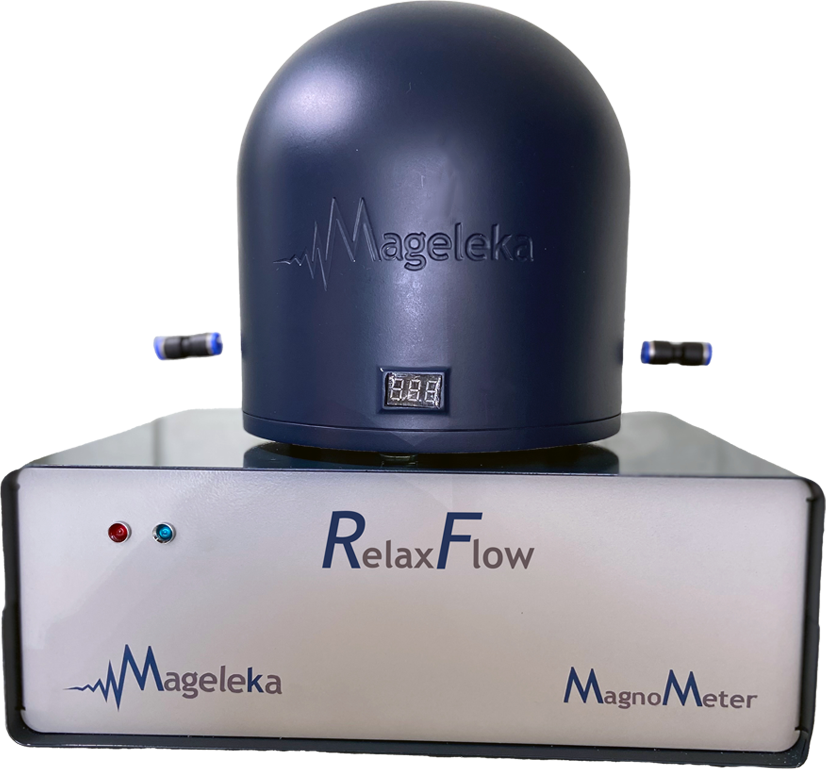

RelaxFlow

The RelaxFlow is ideal for use with heterogeneous suspensions where batch sampling is problematic. Use it to monitor milling processes in real time, and under industry-relevant conditions. Also for investigation of the impact of continuous addition of chemical reactants, and for laboratory studies of process control.

RelaxFlow is Ideal for applications involving heterogeneous suspensions where batch sampling is problematic.

    Monitor mixing/milling processes in real-time, under industrially relevant conditions

–          Determine impact of continuous addition of chemical reactants

–          Study dissolution, nucleation, and precipitation processes

–          Laboratory investigations of Process Control

Description

Specifications:

Relaxation Time: T1 100 µs – 100 seconds, T2 50 µs – 100 seconds

Concentration Range: 0.01% – 90% wt (sample dependent), no dilution required

Particle Size Range: 5 nm – 5 µm

Temperature Range: 4°C to 80°C

Sample Tube Size (I.D.): 2 mm – 8 mm

Sample Volume: 100 µL typical

Voltage: 100-240 VAC 50/60 Hz

Power: 120 Watts

Connectivity: Ethernet

Control Module: 360 x 255 135 mm (LxWxH);

Weight: 6.3 kg

MagnoPod™: 210 x 215 mm (H x Diam);

Weight: 1.5 kg

Category: Particle Characterization
