| Laboratory instrument |
Wax Flow Loop |
|---|---|
| Application |
Research of wax-, paraffin- and asphaltene depositions in pipelines |
| Temperature range |
Model pipeline: -10 °C … +80 °C (+14 °F … +176 °F) |
| Pressure range |
0 bar … 5 bar (0 psi … 72,5 psi) |
| Flow rate |
0.3 ml/min … 30 ml/min |
| Stirrer speed |
100 rpm … 2,000 rpm |
| Sample volume |
min. 50 ml |
| Power consumption |
max. 2,900 W |
| Voltage input |
230 V~ (110 V~ on request) |
| Weight |
app. 72 kg |
| Dimensions (WxDxH) |
130 x 60 x 70 cm |

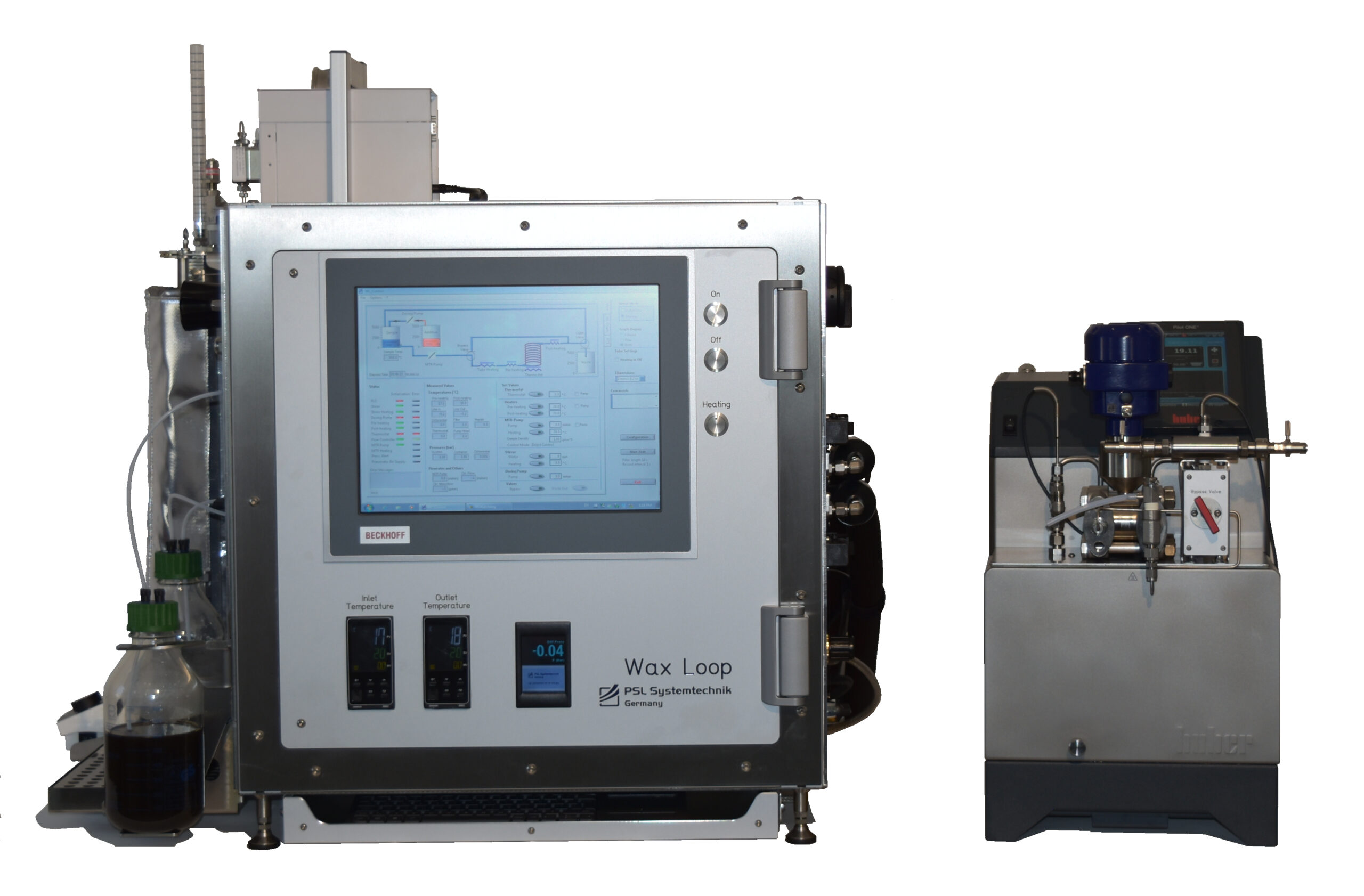

WAX FLOW LOOP
Analysis of wax appearance and deposition in pipelines:
The fully automated Wax Flow Loop by PSL Systemtechnik is a compact laboratory instrument to research deposition effects of waxes, paraffins and asphaltenes in pipelines.
