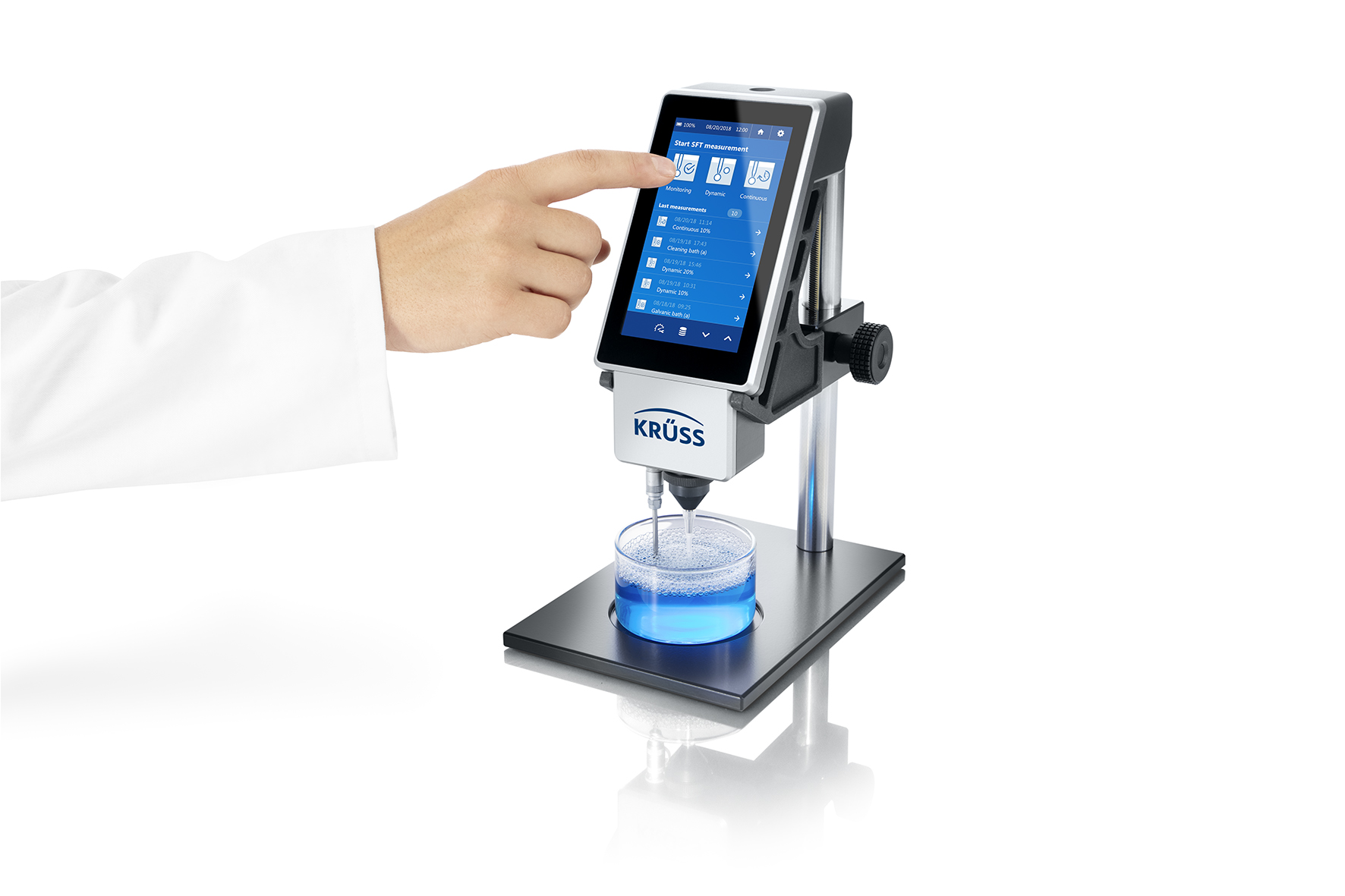

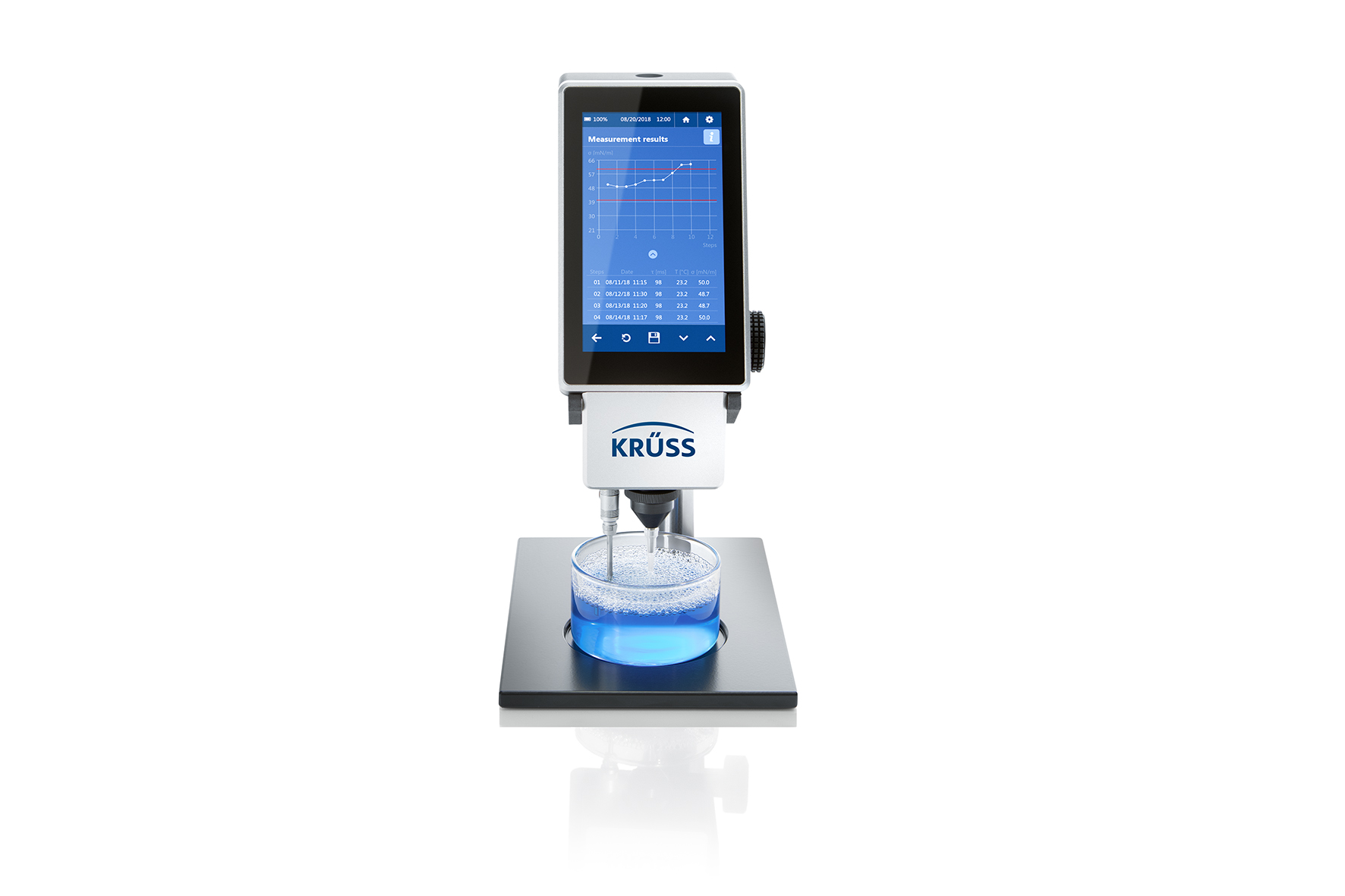

BPT MOBILE

Immerse – click – read: Capture the surfactant concentration of your bath within seconds using surface tension (SFT) with the BPT Mobile Bubble Pressure Tensiometer. The quality inspector using it knows immediately if the bath is okay thanks to an ad-hoc evaluation. Moreover, for proactive adjustment of the bath, the BPT Mobile shows how the surfactant content decreases over time.

Additional information
INSTRUMENT DIMENSIONS

Footprint: 85 mm × 55 mm (W × D)
Height: 220 mm
Weight: (without accessories) 0.6 kg
TEMPERATURE MEASUREMENT

Range of temperature measurement: 0 to 100 °C
Resolution: 0.1 °C
Location of temperature measurement: sample liquid
PRESSURE MEASUREMENT

Maximum pressure: 1250 Pa
Precision: 2%
BUBBLE PRESSURE

Results: dynamic surface tension vs. surface age
dynamic surface tension at constant surface age
single dynamic surface tension / bath concentration
Range (surface tension): 10 to 100 mN/m
Resolution (surface tension): 0.1 mN/m
Precision (surface tension): 0.5 mN/m
Range (surface age): 10 to 30000 ms
Resolution (surface age): 1 ms
Precision (surface age): max. 7.5%
Download PDF
For More Information
Category: Surface Tension Instruments
