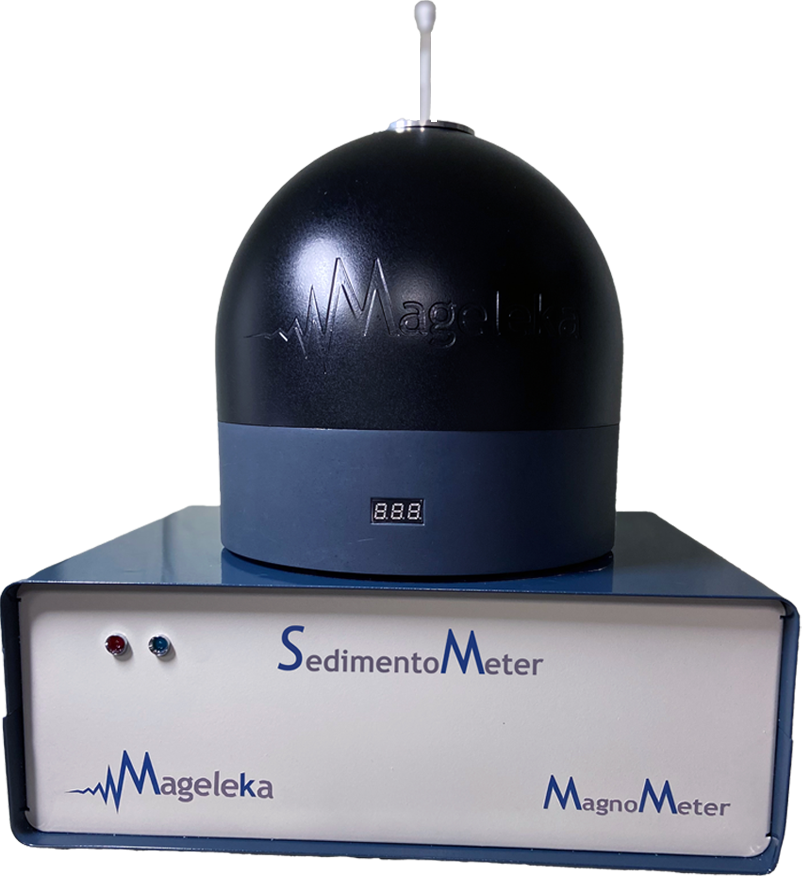

Sedimento Meter

The SedimentoMeter is a simple benchtop device for: determining settling/sedimentation rates of slurries, investigating particle aggregation (coagulation/flocculation), and measuring fast or slow kinetic processes and mechanisms. It is ideal for accelerated aging and shelf-storage studies.

SedimentoMeter is Ideal for studies of accelerated aging and shelf-storage behaviour.

Specifications:

Additional information
  • Relaxation Time: T1 100 µs – 100 seconds, T2 50 µs - 100 seconds
  • Concentration Range: 0.01% - 90% wt (sample dependent), no dilution required
  • Particle Size Range: 5 nm – 5 µm
  • Temperature Range: 4°C to 80°C
  • Sample Tube Size (I.D.): 2 mm – 8 mm
  • Sample Volume: 100 µL typical
  • Voltage: 100-240 VAC 50/60 Hz
  • Power: 120 Watts
  • Connectivity: Ethernet
  • Control Module: 360 x 255 135 mm (LxWxH);
  • Weight: 6.3 kg
  • MagnoPod™: 210 x 215 mm (H x Diam);
  • Weight: 1.5 kg
For More Information
Category: Material Testing Instruments
