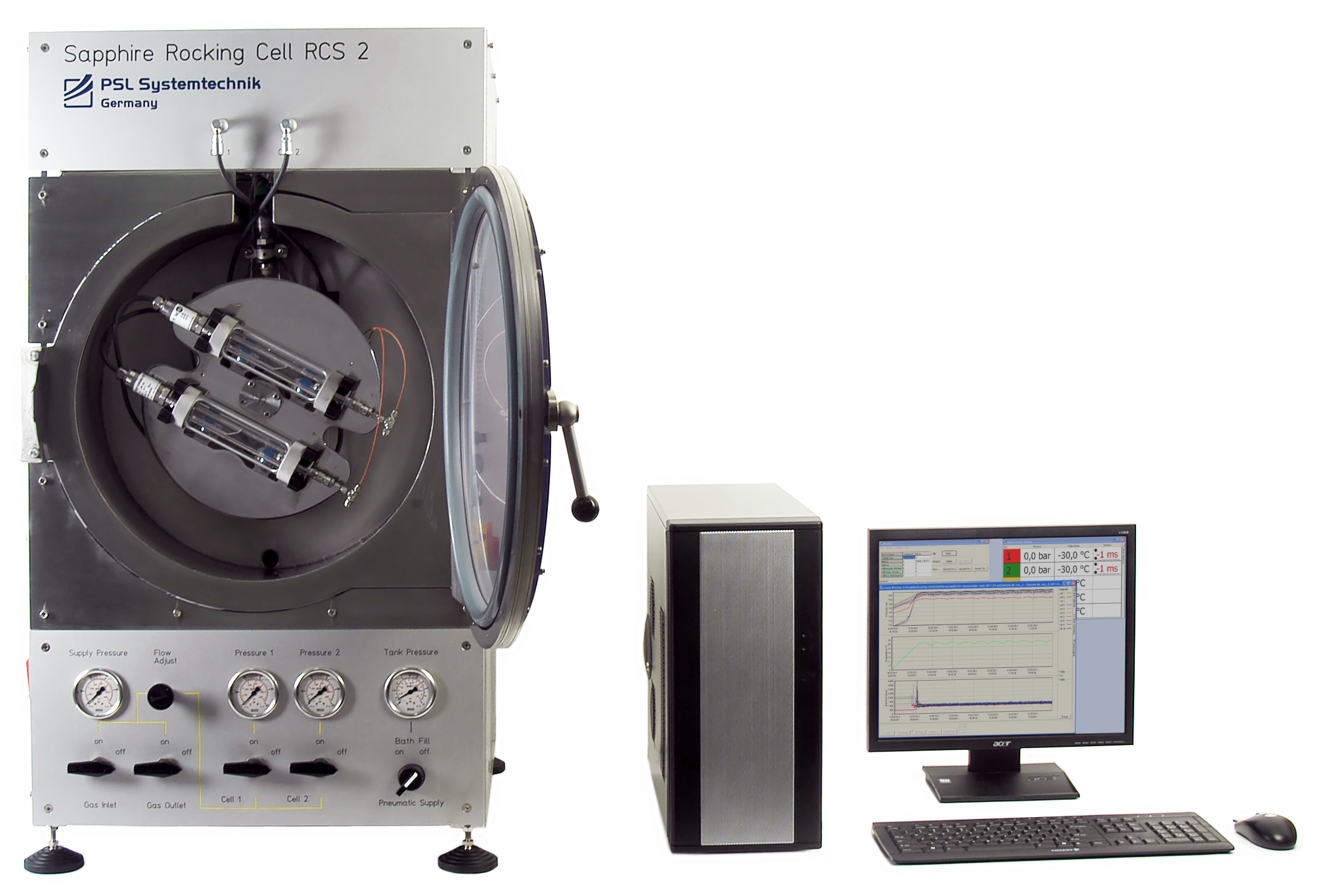

SAPPHIRE ROCKING CELL

Test of AA and KHI at deepwater conditions

Multi-phase flow testing

Full view polished test cell for optimization of inhibitors

Ball run time measurement

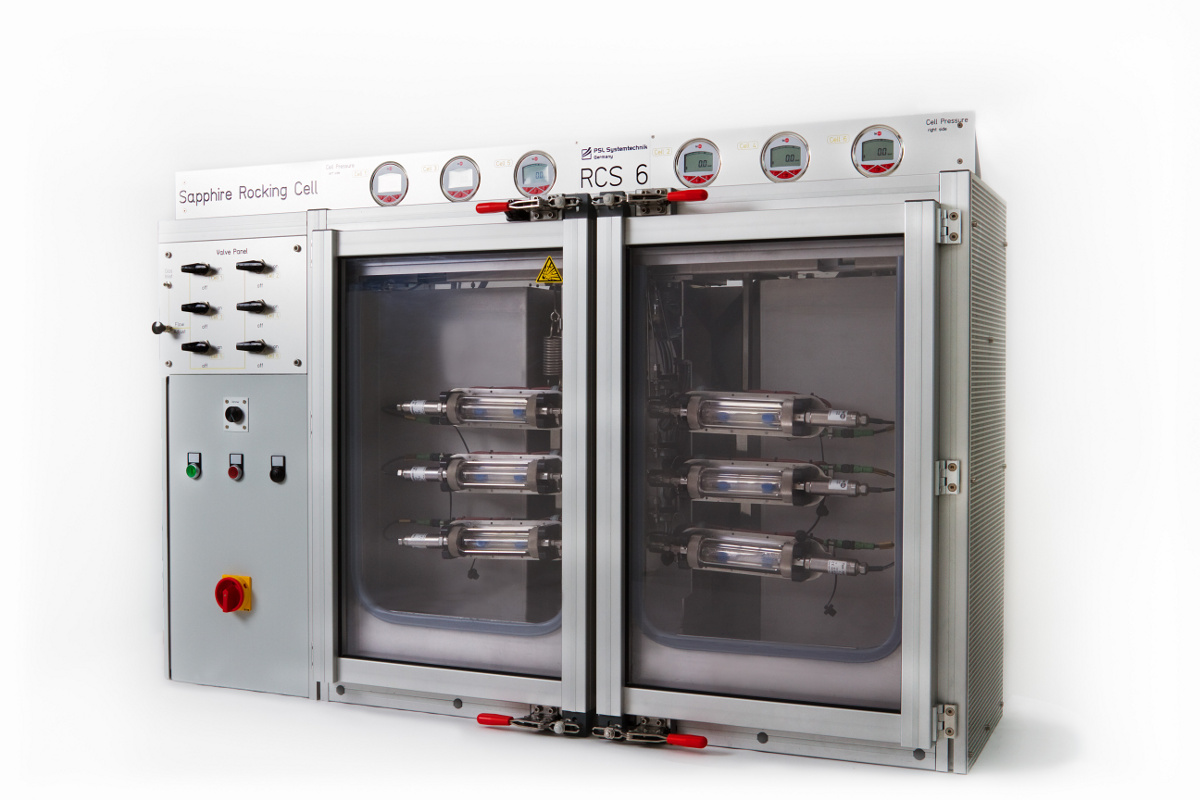

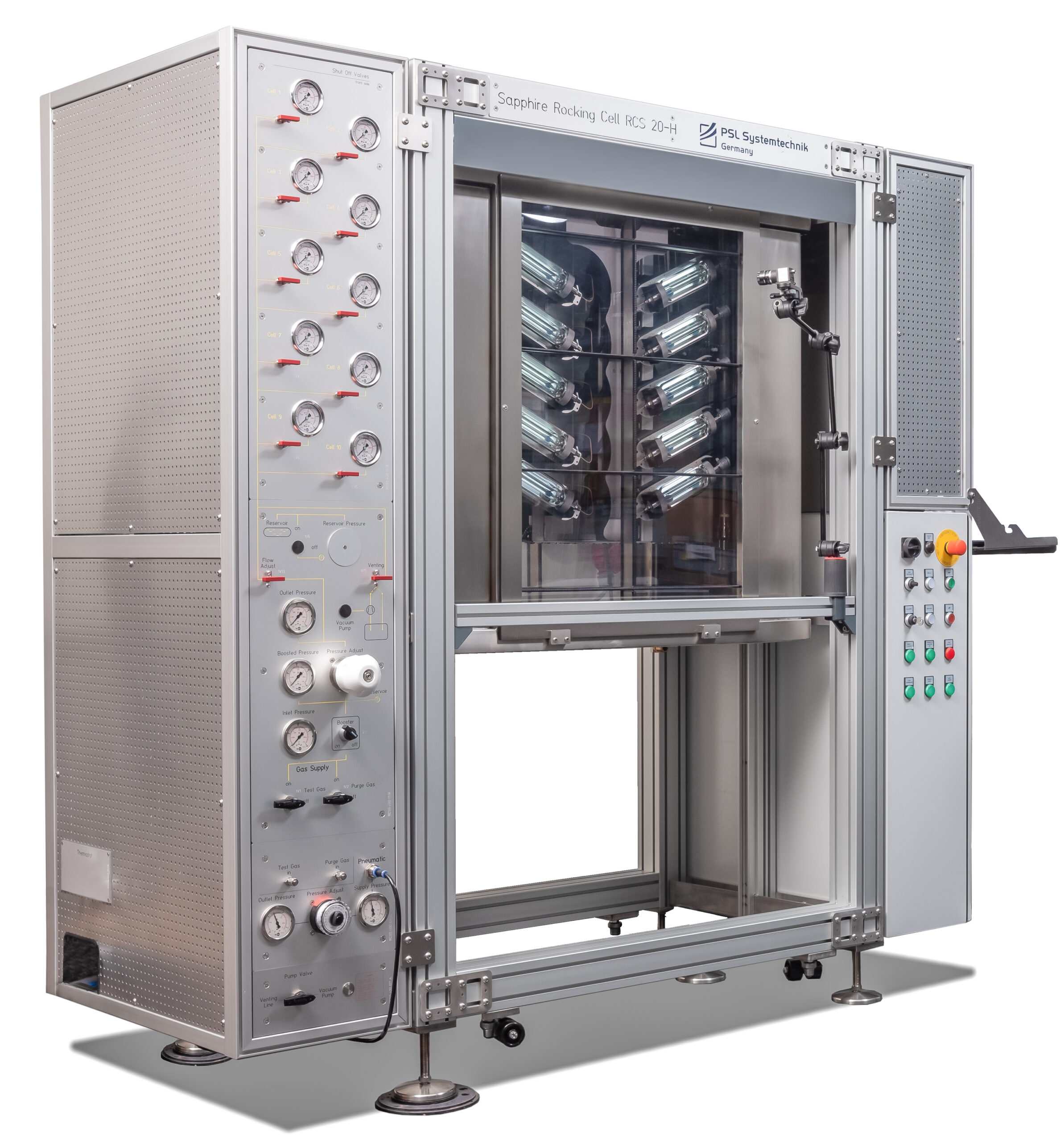

4 designs – 2,6,8,20 test cells max

Stringent test conditions for improvement on product safety for deepwater application

Sour gas testing

Additional information
Instrument

Rocking Cell RCS
Rocking Rate

Research on gas hydrates, Hydrate Inhibitors, Corrosion adjustable 1 …….20 Min -1
Rocking angle

adjustable 1 ….45 degrees
Pressure range

up to 200 bar (2,900 psi)
Temperature range

_10 …. +60 degreeC (+14 … +140 degreeC), depending on thermostat
Data recording

variable between 1 and 30 sec
Voltage input

230 V~, 50/60 Hz (115 V~ on request)
Power consumption

max. 7kW (without thermostat)
Weight

RCS6 (RCS20): approx. 230 kg (380 kg) without thermostat
Dimensions

RCS6 (RCS20): 110 x 80 x 220 cm) without thermostat
