Relaxometer

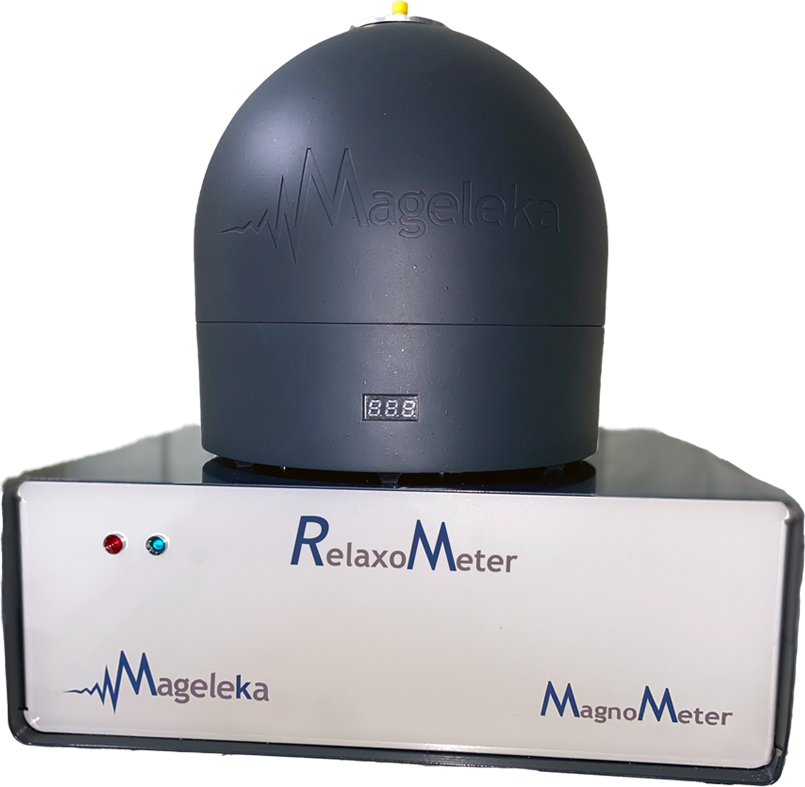

Mageleka’s flagship instrument is the MagnoMeter XRS™ RelaxoMeter, a powerful and versatile next-generation benchtop low-field NMR spectrometer that provides fast, accurate, particle characterization and solid-liquid interface analysis of dispersions and liquid-liquid interface analysis of emulsions. It is ideal for fundamental formulation R&D, rapid QC of incoming raw materials, and QA of final commercial products.

RelaxoMeter is ideal for fundamental formulation R&D, rapid Quality Control of incoming raw materials and Quality Assurance of final commercial products.

  • Determine HSP of powders
  • Select the optimum solvent/solvent mixture for polymers and dispersants
  • Estimate the wetted surface area of colloids, suspensions, and slurries
  • Study adsorption/competitive adsorption/desorption of surfactants and polymers
Additional information
Specifications:
  • Relaxation Time: T1 100 µs – 100 seconds, T2 50 µs - 100 seconds
  • Concentration Range: 0.01% - 90% wt (sample dependent), no dilution required
  • Particle Size Range: 5 nm – 5 µm
  • Temperature Range: 4°C to 80°C
  • Sample Tube Size (I.D.): 2 mm – 8 mm
  • Sample Volume: 100 µL typical
  • Voltage: 100-240 VAC 50/60 Hz
  • Power: 120 Watts
  • Connectivity: Ethernet
  • Control Module: 360 x 255 135 mm (LxWxH);
  • Weight: 6.3 kg
  • MagnoPod™: 210 x 215 mm (H x Diam);
  • Weight: 1.5 kg
