POUR POINT TESTER PPT 45150

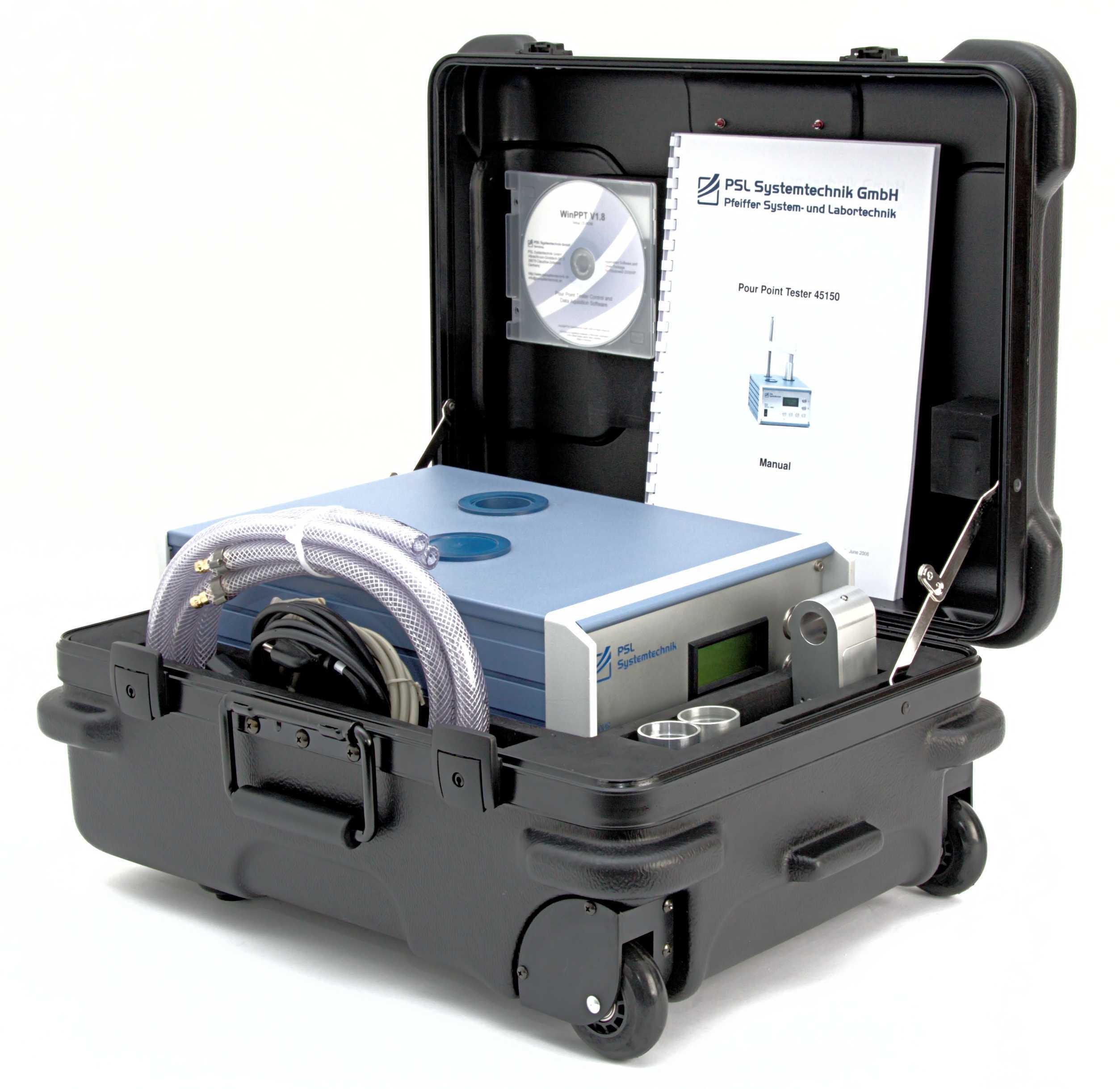

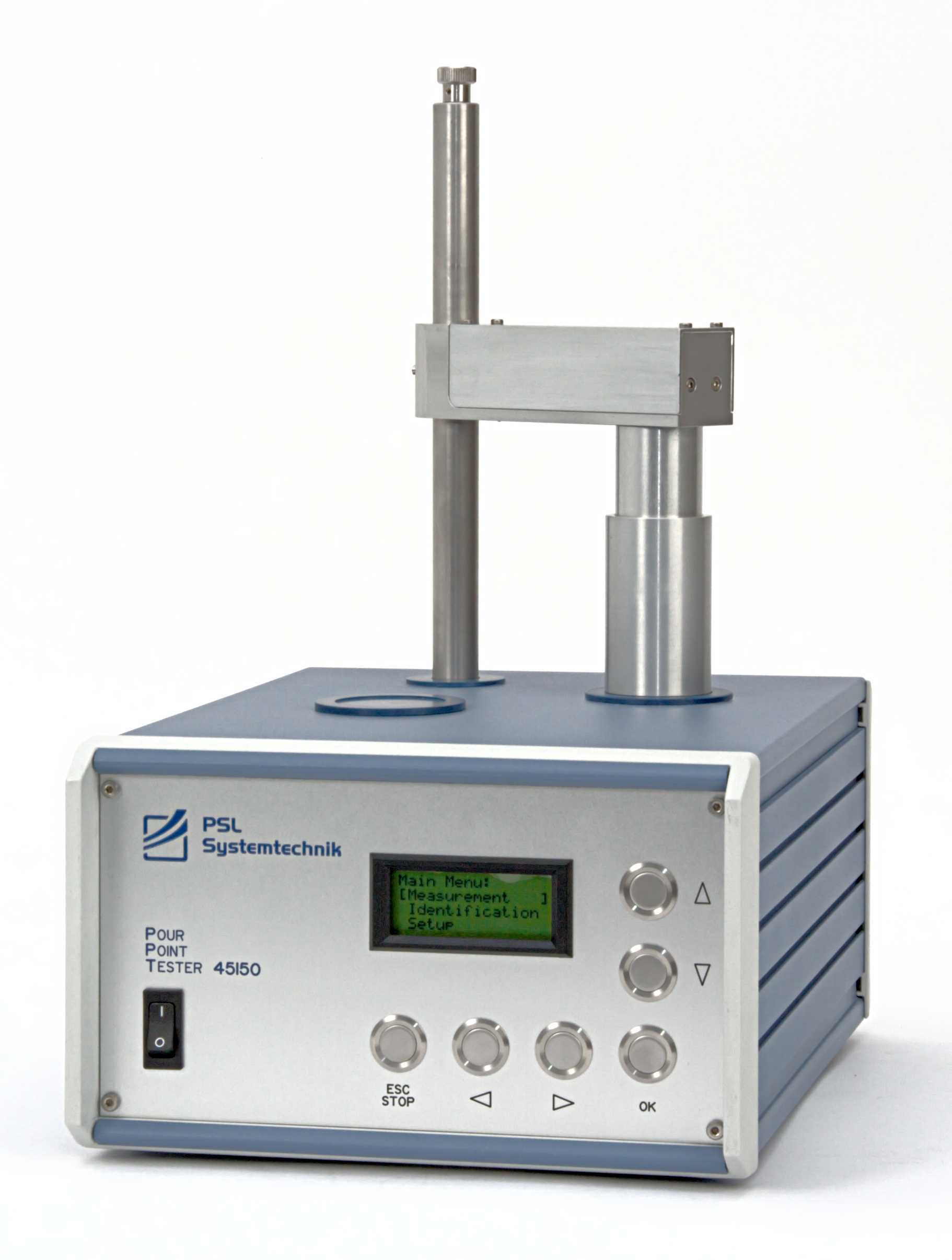

The portable Pour Point Tester PPT 45150 by PSL Systemtechnik is a compact lab instrument to measure the no-flow point and calculate the pour point of oils and oil products. The PPT 45150 measures according the rotational method ASTM D5985.

Additional information
Lab Instrument

Pour Point Tester PPT 45150
Application

Measurement of pour points in oils and oil products
Standard

ASTM D5985 – rotational method
Temperature range

-45 °C* … + 150 °C (-49 °F … +302 °F),
*Lowest temperature at a cooling water temperature of 8 °C (46,4 °F),
-55 °C (-49 °F) with recooler
Resolution

0.1 °C (0.1 K)
Accuracy

< ± 0.4 K (± 0.2 K typical)
Sample volume

approx. 30 ml
Cooling water usage

300 ml/min … 800 ml/min (10 fl oz/min … 27 fl oz/min)
Cooling water pressure

1 bar … 6 bar (14.5 psi … 87 psi)
Cooling water temperature

+ 3 °C … + 25 °C (+37 °F … +86 °F)
Possible precool-temperature with recooler

down to -20 °C / -4 °F
Power consumption

1,700 W
Voltage input

88 V~ … 264 V~ (47 Hz … 63 Hz) – wide range
Weight

9.5 kg / 21 lb
app. 14 kg / 31 lb with trolley-case
Dimensions (WxDxH)

26 x 38 x 16 cm (10 x 15 x 6 in)
Height with sensor head 43 cm/17 in
40 x 53 x 24 cm (16 x 21 x 9 in) in case
