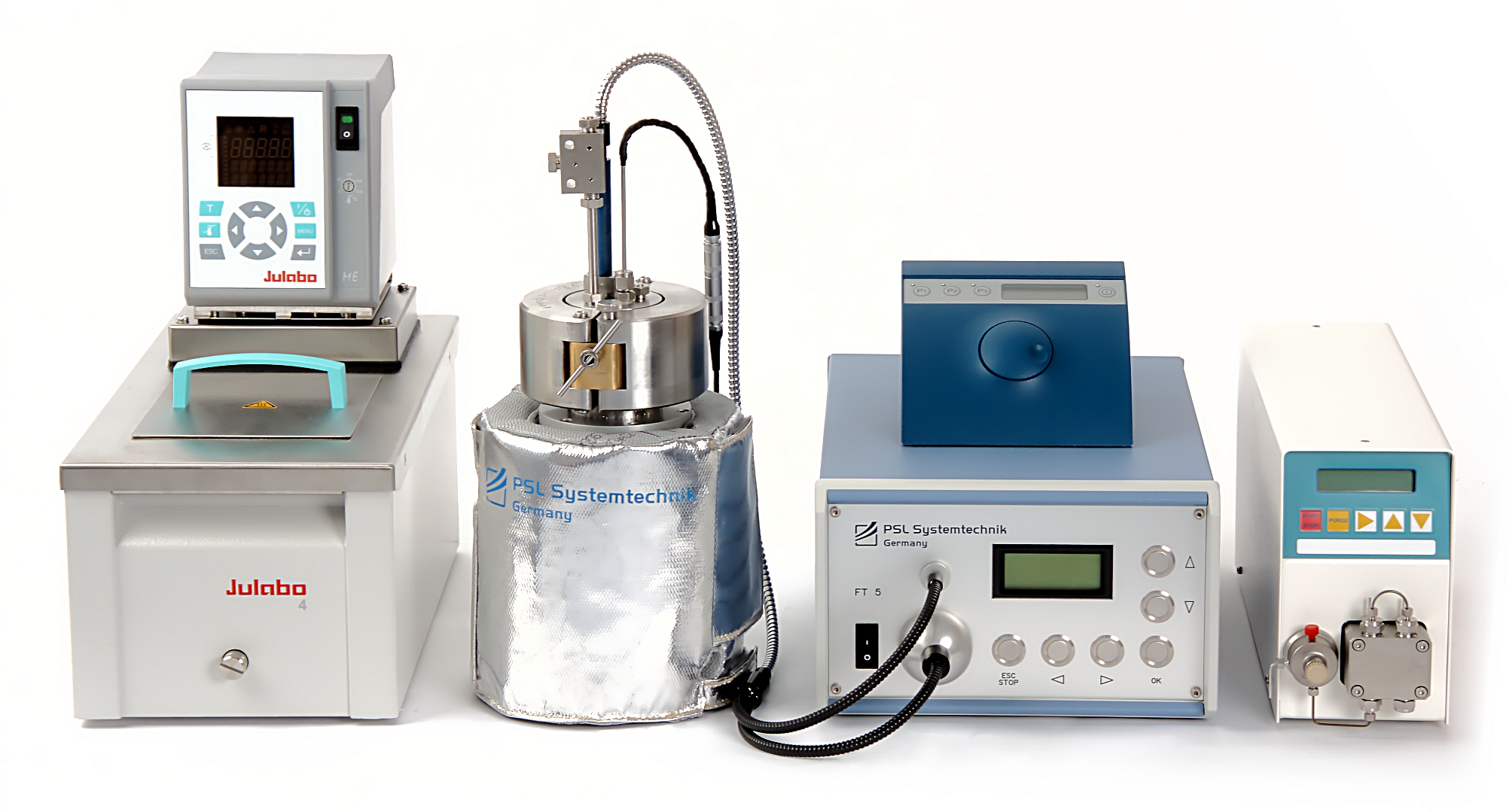

FLOCCULATION TITRIMETER FT5

Measuring Instrument	Automated Flocculation Titrimeter FT
Application	For very dark, undiluted oils Oberservation of precipitation and crystalisation of asphaltenes Turbidity measuring Crystal formation Determination of flockulation points Oil stability and compatibility tests for crude and condensate Live oil testing In-line solid detection of asphaltene, wax and scale Quality control
Standard	based on ASTM D6703 – Automated Heithaus Titrimetry
Temperature range	10 bar model: -25 °C … +80 °C (-13 °F … +176°F) higher pressurised models: -25 °C … +200 °C (-13 °F … +392°F) other temperature ranges on request
Pressure range	3 models: up to 10 bar (145 psi), up to 200 bar (2,900 psi) or up to 700 bar (10,000 psi)
Stirrer speed	0 / 100 … 1.000 rpm
Flow rate	0,3 … 30 ml/min
Power consumption	300 W
Voltage input	115 V~ / 230 V~ (auto-select)
Weight	Basic unit FT: 4 kg (9 lb) FT in transport case: 9 kg (20 lb) Complete system: ca. 50 kg (110 lb)
Dimensions (WxDxH)	Basic unit FT: 26 x 38 x 16 cm (10 x 15 x 6 in) FT in transport case: 40 x 53 x 24 cm (16 x 21 x 6 in) Complete system: 110 x 40 x 50 cm (43 x 16 x 20 in)

Measuring Instrument

Automated Flocculation Titrimeter FT

Application

For very dark, undiluted oils
Oberservation of precipitation and crystalisation of asphaltenes
Turbidity measuring
Crystal formation
Determination of flockulation points
Oil stability and compatibility tests for crude and condensate
Live oil testing
In-line solid detection of asphaltene, wax and scale
Quality control

Standard

based on ASTM D6703 – Automated Heithaus Titrimetry

Temperature range

10 bar model: -25 °C … +80 °C (-13 °F … +176°F)
higher pressurised models: -25 °C … +200 °C (-13 °F … +392°F)
other temperature ranges on request

Pressure range

3 models: up to 10 bar (145 psi), up to 200 bar (2,900 psi) or up to 700 bar (10,000 psi)

Stirrer speed

0 / 100 … 1.000 rpm

Flow rate

0,3 … 30 ml/min

Power consumption

300 W

Voltage input

115 V~ / 230 V~ (auto-select)

Weight

Basic unit FT: 4 kg (9 lb)
FT in transport case: 9 kg (20 lb)
Complete system: ca. 50 kg (110 lb)

Dimensions (WxDxH)

Basic unit FT: 26 x 38 x 16 cm (10 x 15 x 6 in)
FT in transport case: 40 x 53 x 24 cm (16 x 21 x 6 in)
Complete system: 110 x 40 x 50 cm (43 x 16 x 20 in)
