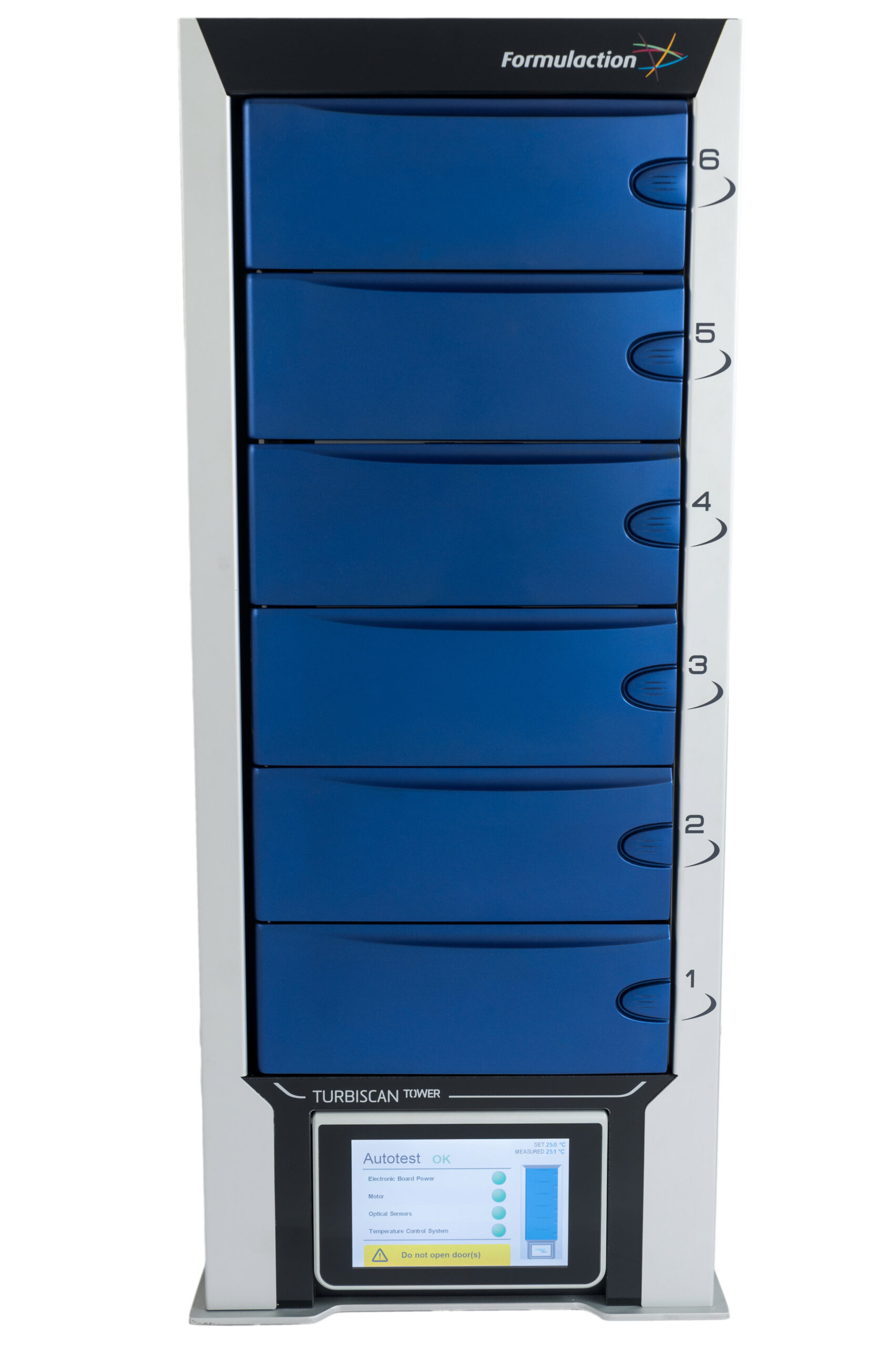

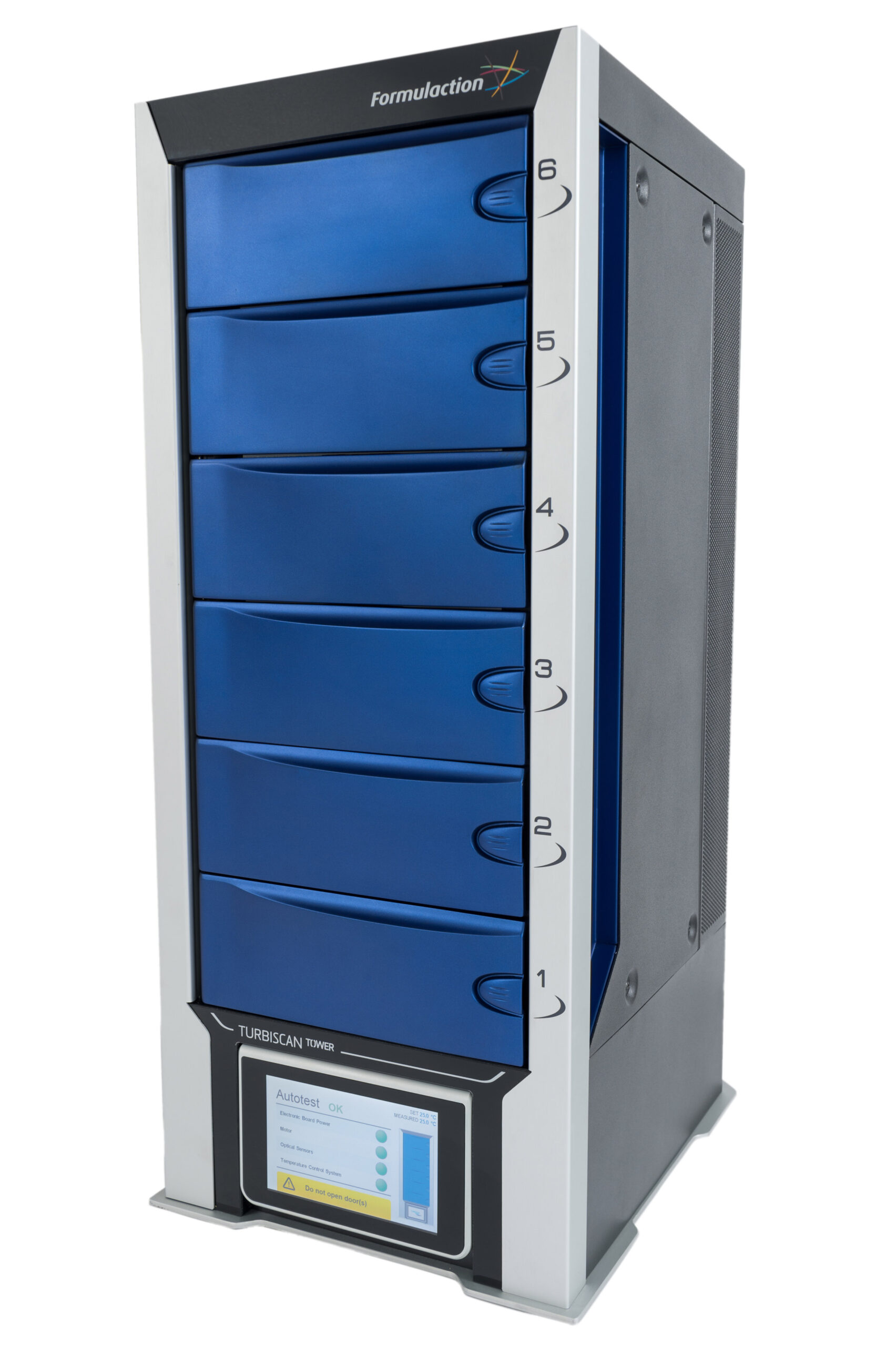

TURBISCAN TOWER

Turbiscan TOWER is for full characterization of the dispersion stability of concentrated formulations (emulsions, suspensions, foams). 6 independent measurement positions allow simultaneous comparison of formulations for faster and better understanding of destabilization mechanisms (creaming, sedimentation, flocculation, coalescence..). Dispersion Analysis can be performed from 4 to 80°C to accelerate the destabilization process or to reproduce storage conditions. An improved mechanical design and vertical set-up offer better performance and smaller bench footprint.

Additional information
Technology

Static Multiple Light Scattering (SMLS)
Light Source

LED emitting NIR radiation
at 880nm
Displacement interval max. resolution

5 μm
Maximum displacement velocity

15mm/s
Maximum sample conc.

95% v/v
Sample Volume

1.5 – 30mL
Temperature range

4 – 80 °C
Number of samples

1 – 6
Sample concentration

0.0001 – 95% v/v
Measured size range

10 nm – 1mm
Reproducibility / Repeatability

+/- 0.05% / 0.05%
Automatic samples recognition (bar-code)

Yes
ISO Compliant

TR 13097 / TR18811 / TR 13014
Dimensions

38 x 45 x 90 cm
Download PDF
Category: Dispersion / Suspension / Emulsion Stability Analyzers
