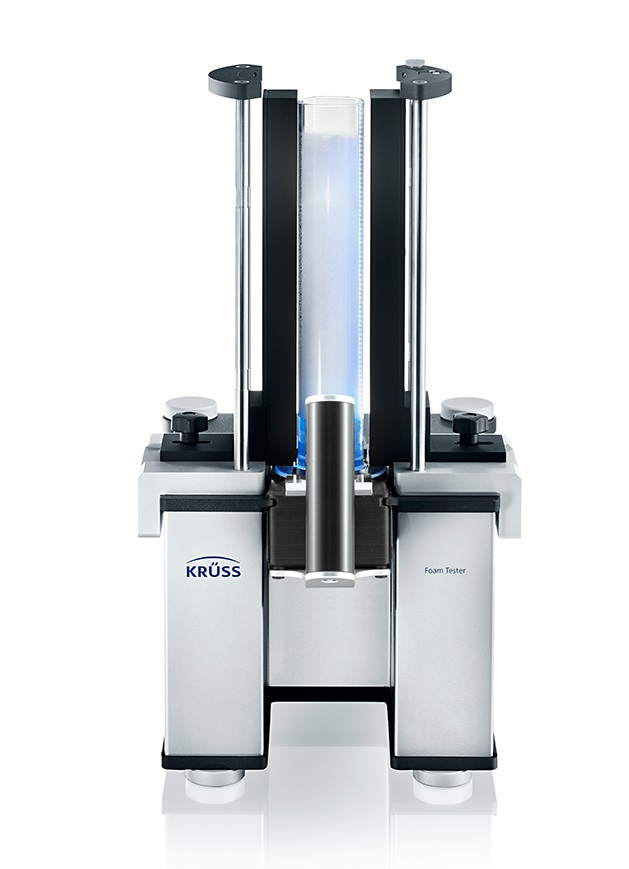

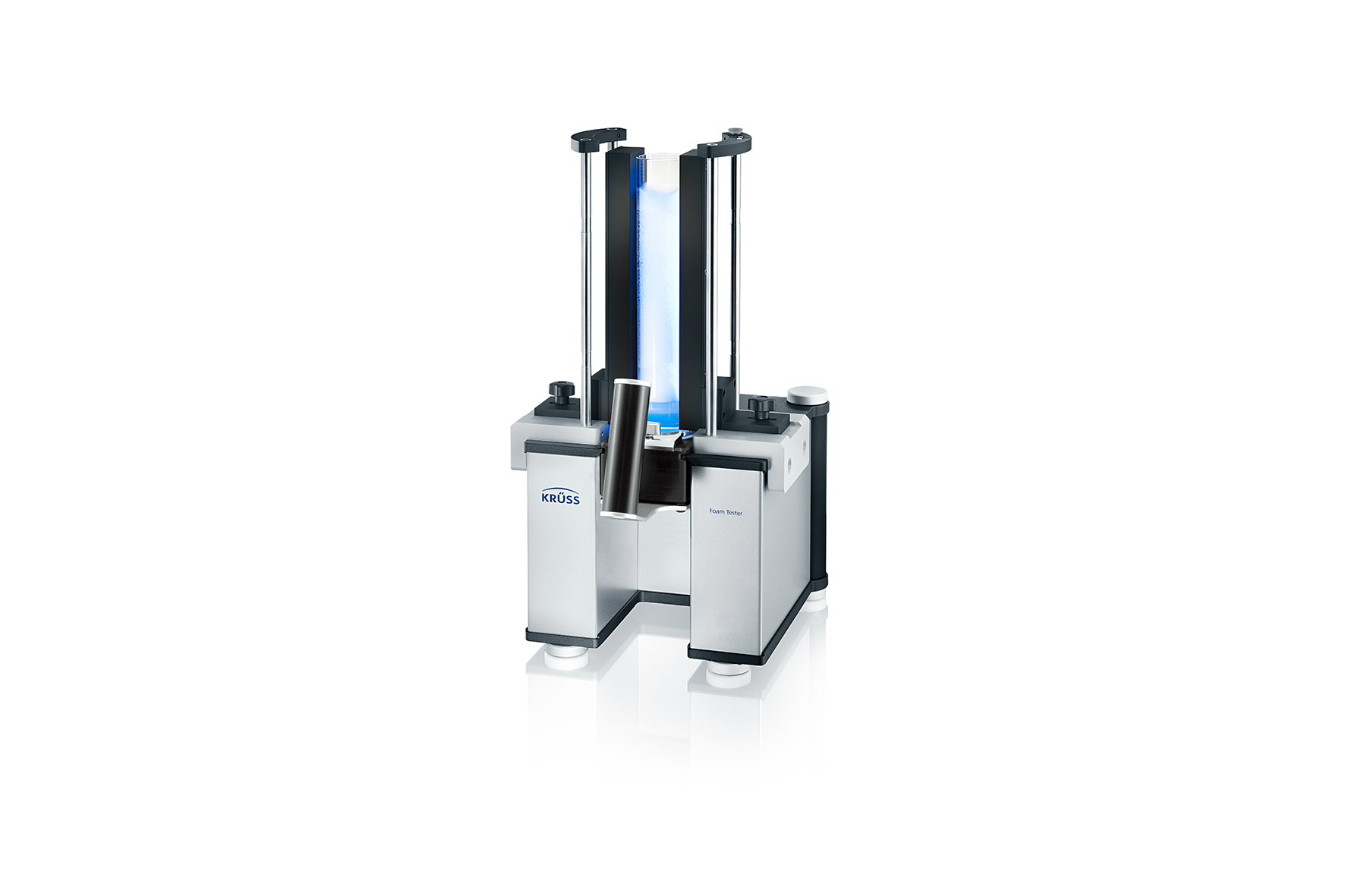

FOAM TESTER

Foam is a welcome companion to many products, but almost as often it is a nuisance that must to be avoided. Either way, for quality control of your products and processes, it is necessary to exactly determine the foaming behavior of the liquids and foam-inhibiting additives involved. The easy-to-use Foam Tester – FT carries out this task reliably and in an exactly repeatable manner. Using accurately controlled gas flow and precise electronic foam height measurement, the Foam Tester gives you significant results for the foaming capacity of your liquid and the decay speed of the resulting foam.

Additional information
INSTRUMENT DIMENSIONS

Footprint: 245 mm × 275 mm (W × D)
Height: 460 mm
Weight (without accessories): 9 kg
TEMPERATURE MEASUREMENT

Sensor: PT100
Range of temperature measurement: 4 to 90 °C
Resolution: 0.1 °C
Precision: 0.1 °C
Accuracy: 1/3 DIN B (±0.1 °C at 0 °C / ±0.8 °C at 400 °C)
Location of temperature measurement: inside sample liquid
External sensor: optional
SAMPLE DIMENSIONS

Min. recommended sample volume: 50 mL with 40 mm diameter column
ENVIRONMENT

Operating temperature 15 to 30 °C
Humidity without condensation
TEMPERATURE CONTROL

Type of temperature control: optional: double-walled glass column
Range of temperature control: 4 to 90 °C
(additional thermostat needed: TB14)
ACCESSORIES

Glass columns: 40 mm diameter, temperature control option
Material of columns and filters: column: borosilicate glass, norm: ISO 4793, filter paper: cellulose
Material of sealings: silicone and FKM
LINE SENSOR

Sensor resolution: 1728 × 1 px
Spatial resolution: 200 dpi, 0.125 mm
Temporal resolution: 5 fps
Scanning length: 216 mm
OPERATING SYSTEM

Internal gas flow rate: 0.2 to 1 L/min
External gas flow rate: 0.05 to 1 L/min
Approved gases: air
nitrogen
carbon dioxide
Approved pressure: 5 ± 0.5 bar
Approved temperature: 4 to 90 °C
Stirring speed: up to 8000 rpm
ILLUMINATION

Type: LED
Wave length, dominant (height detection): 469 nm (optional IR: 850 nm)
MEASUREMENT SPECIFICATIONS

Analyzed foam characteristic: foamability and foam stability
Results: foam height
liquid height
total height
foam capacity
foam half life time
drainage half life time
sample temperature
